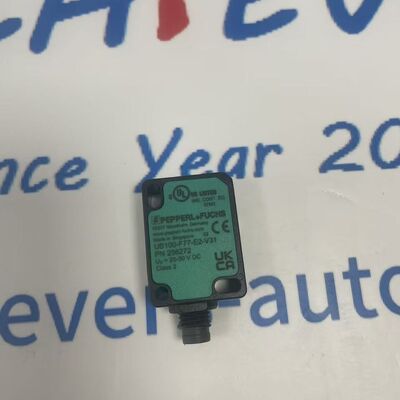

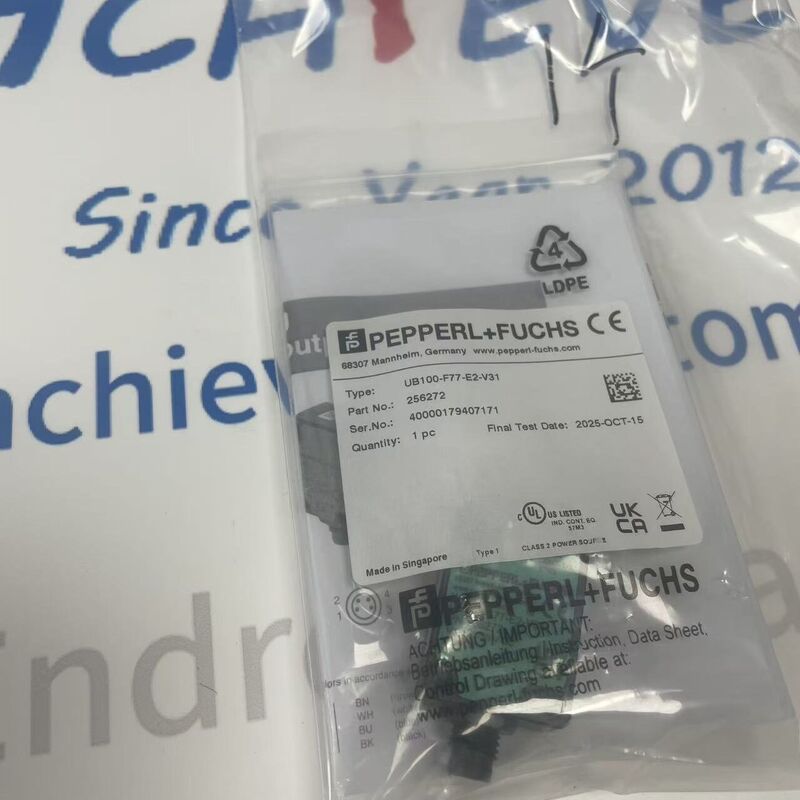

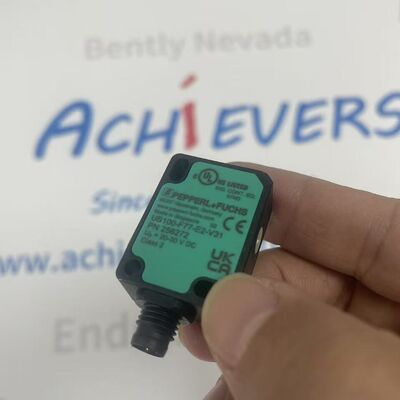

Pepperl+Fuchs UB100-F77-E2-V31 Ultrasonic Direct Detection Sensor
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : UB100-F77-E2-V31
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Pepperl+Fuchs, a global leader in industrial automation and sensor technology, presents the UB100-F77-E2-V31 ultrasonic direct detection sensor—engineered for reliable non-contact detection of objects regardless of color, surface texture, or environmental interference. Designed with a miniature polycarbonate housing and advanced ultrasonic technology, this sensor delivers consistent performance, easy programming, and flexible integration, making it ideal for a wide range of manufacturing, robotics, and automation scenarios that require precise distance-based detection.
Detail:
|
Specification
|
Details
|
|
Product Model
|
UB100-F77-E2-V31
|
|
Manufacturer
|
Pepperl+Fuchs
|
|
Sensor Type
|
Ultrasonic Direct Detection Sensor
|
|
Sensing Range
|
10 - 100 mm
|
|
Adjustment Range
|
30 - 100 mm
|
|
Dead Band
|
0 - 10 mm
|
|
Transducer Frequency
|
Approx. 400 kHz
|
|
Supply Voltage
|
20 - 30 V DC (ripple 10% SS); 12 - 20 V DC (sensitivity 90%)
|
|
Output Type
|
1 Switch Output PNP, Normally Open (NO), Short-Circuit/Overload Protected
|
|
Response Delay
|
≤ 50 ms
|
|
Category
|
Specifications
|
|
Housing Design
|
Miniature Rectangular, Polycarbonate (PC) Material
|
|
Transducer Material
|
Epoxy Resin / Hollow Glass Sphere Mixture; Polyurethane Foam
|
|
Connection Type
|
M8 x 1 Connector, 4-Pin
|
|
Protection Class
|
IP67
|
|
Operating Temperature
|
-10 °C to 50 °C (14 °F to 122 °F)
|
|
Storage Temperature
|
-40 °C to 85 °C (-40 °F to 185 °F)
|
|
Dimensions
|
23 mm (Length) × 12 mm (Width) × 31 mm (Height)
|
|
Weight
|
Approx. 10 g
|
|
Certifications & Standards
|
EN IEC 60947-5-2:2020, IEC 60947-5-2:2019, UL Approved (culis Listed), CSA Approved
|
Brand
Pepperl+Fuchs Automation is our world. Perfect application solutions are our goal.
In 1945, against the backdrop of a war - torn world, Walter Pepperl and Ludwig Fuchs, driven by a strong sense of inventiveness, entrepreneurial foresight, and a deep - seated belief in self - reliance, established a humble radio workshop in Mannheim, Germany.
Their journey was filled with hands - on exploration. As they worked on various radio - related projects, the experiences they amassed became the fertile ground for new and innovative concepts. They took great pleasure in delving into the needs of their customers, constantly striving to develop products that could meet and exceed expectations.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
