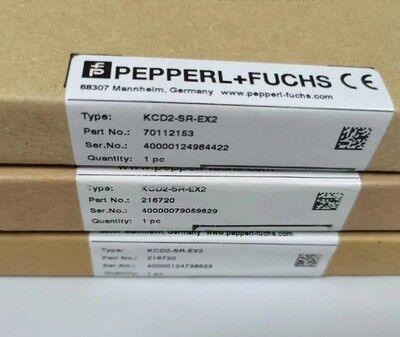

Pepperl+Fuchs KCD2-SR-EX2 high-performance 2-channel isolated barrier
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : KCD2-SR-EX2
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Pepperl+Fuchs KCD2-SR-EX2 belongs to Pepperl+Fuchs’ K-system product lineup, renowned for its compact design, high safety performance, and easy integration into industrial control panels. As a 2-channel isolated barrier, it is specifically designed for intrinsic safety applications, capable of transmitting digital signals from NAMUR sensors or mechanical contacts in hazardous areas to safe area control systems. It features galvanic isolation between input, output, and power supply, preventing noise, potential differences, or transients from the hazardous area from affecting safe area circuits.
Key features of the Pepperl+Fuchs KCD2-SR-EX2 include 2-channel isolated design, dry contact or NAMUR inputs, relay contact outputs, and line fault detection (LFD) that can be enabled or disabled via a DIP switch. The barrier also boasts a compact 12.5 mm wide housing, IP20 protection rating, and compliance with SIL 2 (IEC 61508) safety standards, making it suitable for space-critical and high-safety industrial applications. As part of Pepperl+Fuchs’ proven product lineup, it adheres to international quality and safety standards, reflecting the brand’s commitment to engineering excellence and reliable intrinsic safety solutions.
Detail:
|
Parameter
|
Specification
|
|
Product Model
|
Pepperl+Fuchs KCD2-SR-EX2
|
|
Product Type
|
2-Channel Isolated Barrier (Intrinsic Safety)
|
|
Safety Integrity Level
|
SIL 2 (SC 3) according to IEC/EN 61508
|
|
Supply Voltage (UB)
|
19 V DC to 30 V DC, Ripple ≤ 10%
|
|
Power Consumption
|
≤ 600 mW (no load, UB = 24 V DC)
|
|
Input Type
|
Dry Contact or NAMUR (EN 60947-5-6)
|
|
Input Parameters
|
Open Circuit Voltage: ~10 V DC; Short Circuit Current: ~8 mA
|
|
Line Fault Detection (LFD)
|
Breakage: I ≤ 0.1 mA; Short Circuit: I ≥ 6.5 mA (Enable/Disable via DIP switch)
|
|
Output Type
|
2 x Relay Contact Output (Form A, Normally Open)
|
|
Output Contact Load
|
253 V AC/2 A (cosΦ > 0.7); 30 V DC/2 A (Resistive Load)
|
|
Response Time
|
≤ 20 ms (Power-On/Power-Off Delay)
|
|
Protection Rating
|
IP20 (EN 60529), Galvanic Isolation (300 V AC)
|
|
Dimension
|
Value (mm)
|
|
Overall Dimensions (W x H x D)
|
12.5 mm x 119 mm x 114 mm
|
|
Housing Type
|
Polycarbonate, Housing Type A2
|
|
Connection Type
|
Spring Terminals (Removable)
|
|
Mounting Type
|
35 mm DIN Rail (EN 60715:2001)
|
|
Net Weight
|
Approx. 100 g
|
|
Labeling
|
Front Panel Labeling Space Available
|
