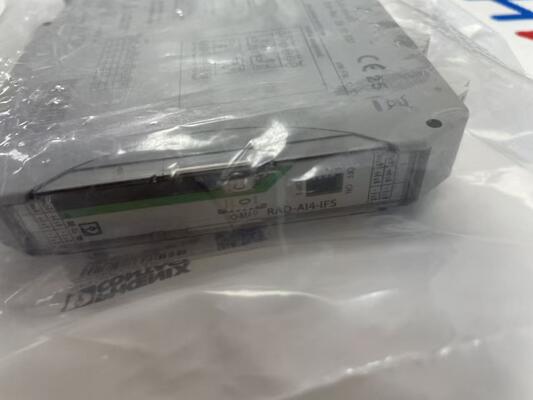

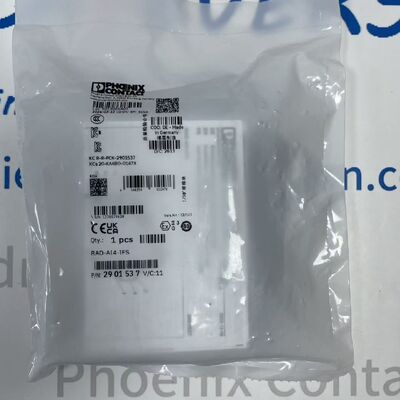

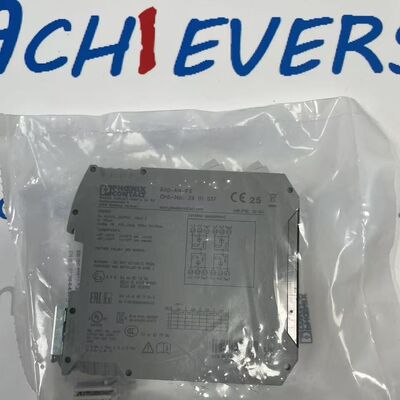

Phoenix Contact RAD-AI4-IFS Industrial IFS Analog Input Extension Module
Product Details:
Manufacturer : Phoenix Contact
Product No. : RAD-AI4-IFS
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Phoenix Contact RAD-AI4-IFS is a high-performance industrial analog input extension module designed for Radioline Interface System (IFS) wireless communication solutions. Developed for harsh industrial automation environments, this module provides reliable multi-channel analog signal acquisition, featuring channel-to-channel electrical isolation, high-precision signal conversion, and tool-free configuration. As a core component of Phoenix Contact’s industrial wireless I/O series, the RAD-AI4-IFS supports hot-swap operation and seamless integration with DIN rail-mounted automation systems, ensuring stable and accurate data transmission for industrial monitoring and control applications.
Detail:
|
Parameter Item
|
Technical Value
|
|
Product Model
|
RAD-AI4-IFS
|
|
Manufacturer
|
Phoenix Contact
|
|
Product Category
|
Industrial Wireless IFS I/O Extension Module
|
|
Product ID
|
21579 / 2901537
|
|
Installation Method
|
Standard DIN Rail Mounting (NS 35, EN 60715)
|
|
Degree of Protection
|
IP20
|
|
Housing Material
|
PA 6.6-FR, Gray (RAL 7042)
|
|
Flammability Rating
|
UL 94 V0
|
|
Overall Dimensions (W×H×D)
|
17.5 mm × 113 mm × 114.5 mm
|
|
Connection Type
|
Screw Connection
|
|
Applicable Altitude
|
≤2000 m
|
|
Certification Compliance
|
CE, ATEX, IECEx, 508 Listed
|
|
Technical Parameter
|
Specification Data
|
|
Power Supply Parameters
|
|
|
Supply Voltage Range
|
19.2 V DC ~ 30.5 V DC (DIN rail connector); Minimum 12 V DC
|
|
Max Current Consumption
|
≤120 mA (24 V DC, 25°C)
|
|
Max Power Dissipation
|
2.88 W (Rated Condition)
|
|
Analog Input Parameters
|
|
|
Number of Input Channels
|
4 Channels (Independent Isolated)
|
|
Input Signal Type
|
0~20 mA / 4~20 mA (Switchable via DIP Switch)
|
|
Max Input Current
|
22 mA
|
|
Input Resistance
|
<70 Ω (Current Input)
|
|
Resolution
|
16 Bit
|
|
Measurement Precision
|
≤0.02% (25°C)
|
|
Temperature Coefficient
|
0.0025 %/K (-40°C ~ +70°C, Typical)
|
|
Insulation & Protection Performance
|
|
|
Rated Insulation Voltage
|
50 V (Analog Input/TBUS Reinforced Insulation, EN 61010); 300 V (Adjacent Device Basic Insulation)
|
|
Insulation Test Voltage
|
1.5 kV AC (50 Hz, 1 Minute)
|
|
Overvoltage Category
|
II
|
|
Pollution Degree
|
2
|
|
Environmental & Mechanical Parameters
|
|
|
Operating Temperature
|
-40°C ~ 70°C (Derating required above 55°C)
|
|
Storage Temperature
|
-40°C ~ 85°C
|
|
Operating Humidity
|
20% ~ 85% (Non-condensing)
|
|
Vibration Resistance
|
5g, 10 Hz~150 Hz (IEC 60068-2-6)
|
|
Shock Resistance
|
16g, 11 ms
|
|
Reliability & EMC Standards
|
|
|
MTTF Value
|
771 Years (25°C, SN 29500 Standard)
|
|
|
EN 61000-6-2 (Noise Immunity), EN 61000-6-4 (Noise Emission)
|
|
Explosion-Proof Grade
|
Ex ec IIC T4 Gc
|
