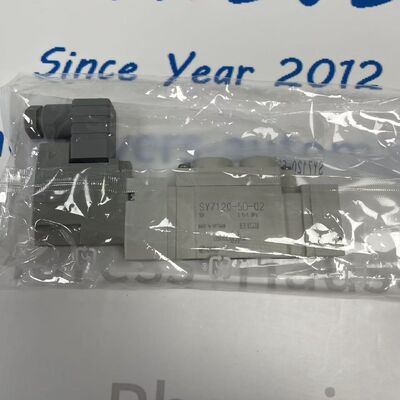

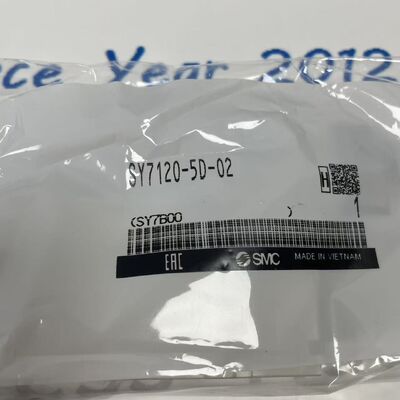

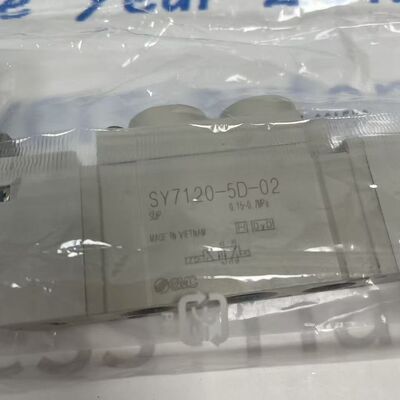

SMC SY7120-5D-02 5/2 Way Pilot-Operated Solenoid Valve
Product Details:
Manufacturer : SMC
Product No. :SY7120-5D-02
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The SMC SY7120-5D-02 is a high-performance 5/2 way internal pilot-operated solenoid valve, belonging to SMC’s renowned SY7000 series, engineered to control air flow in industrial pneumatic systems with exceptional reliability and precision. As a core component of SMC’s pneumatic product range, the SY7120-5D-02 combines compact design, low power consumption, and robust construction, making it an ideal choice for automating pneumatic actuators, cylinders, and other air-driven components in diverse industrial environments. This SMC SY7120-5D-02 solenoid valve features elastic sealing and direct piping design, enabling seamless integration into both standalone and centralized pneumatic systems, while supporting mixed installation of 3-way and 5-way valves for enhanced flexibility.
Description:
|
Parameter
|
Details
|
|
Product Model
|
SMC SY7120-5D-02
|
|
Brand
|
SMC
|
|
Product Type
|
5/2 Way Internal Pilot-Operated Solenoid Valve
|
|
Series
|
SMC SY7000 Series
|
|
Operating Pressure Range
|
0.15 – 0.7 MPa (internal pilot); -100 kPa to 0.7 MPa (external pilot)
|
|
Rated Voltage
|
24 V DC (standard); optional 3, 5, 6, 12 V DC or 100, 110, 200, 220 V AC
|
|
Consumption Power
|
0.35 W (standard); 0.1 W (with energy-saving circuit)
|
|
Operating Frequency
|
5 Hz
|
|
Operating & Fluid Temperature Range
|
-10°C to +50°C (non-freezing condition)
|
|
Parameter
|
Details
|
|
Valve Function
|
2-position, single solenoid (spring return)
|
|
Piping Type
|
Direct piping type; non-insertion valve body
|
|
Connection Type
|
DIN-type socket (wire lead-out method)
|
|
Port Sizes
|
P, R ports: 1/4 Rc; A, B ports: 1/8 Rc
|
|
Response Time (at 0.5 MPa)
|
≤ 32 ms (without indicator & surge voltage suppressor)
|
|
Sealing Method
|
Elastic sealing
|
|
Protection Class
|
Dust-proof; optional IP65
|
|
Compliance & Certifications
|
RoHS compliant, meets international pneumatic component standards
|
